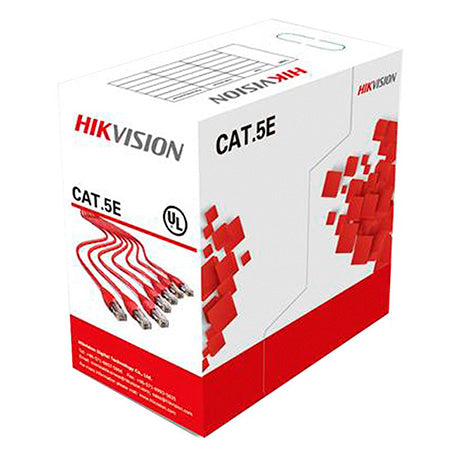

Hikvision 305m Cat5e Cable
DS-1LN5E-S
CAT5E UTP Network Cable (Solid Copper, 0.5 mm, CM)
Full diameter 305 m CAT5E network cable
Core diameter: 0.5mm
Excellent transmission performance using solid copper
Features:
Cable
Category: U/UTP CAT5E-4P- PVC-CM
Test Standard: ISO/IEC11801、TIA-568-C.2 , YD/T1019
Conductor
Material: SOLID-Bare Copper
Copper content:
Nom.O.D.(mm): 0.500
up +0.005
down -0.005
Insulation
Material: HDPE
Diameter: 0.88±0.04mm
Sheath
Thickness: 0.55±0.05 mm
External O.D.: 5.0±0.4 mm
Surface: Clean, Frap, Satiation
Material: PVC(complies RoHS),CM
Color: Multiple
Surface Printing
Letter height: 3.0±0.3mm
Color: Black
Print error & Space: ≤±0.5%，1m
General
Core Color: 1 White- Blue /Blue
2 White-Orange /Orange
3 White-Green /Green
4 White- Brown /Brown
Packing: Wooden Tray & Carton
Carton dimension: Per request
Packing length: 305±1.5m
Rip-cord: Yes
Drain wire: No
Sheath Physical Before Aging Tensile Strength (Mpa) ≥13.5
Properties: Elongation(%) ≥150
Aging Period (℃×hrs) 100℃×24h×10d
After Aging Tensile Strength(Mpa) ≥12.5
Elongation(%) ≥125
Cold bend(-20±2℃×4h) 8×Cable O.D. , No visible cracks
Electrical 1.0-100.0MHz Impedance ((Ω) 100±15
Characteristics: 1.0-100.0MHz Delay Skew (ns/100m) ≤45
DC Resistance (Ω/100m) max 9.5
DC Conductor Resistance Unbalance (%) max 5.0
Ambient temperature: -20℃ - 75℃
